Icom IC-7610 HF/50MHz 100W Transceiver

Faint signals are no longer a challenge for DXers and Contesters around the world, with the new IC-7610. The difference between putting the QSO in the log or trying another time is the capability of your receiver. The high performance RMDR in the IC-7610 has the ability to pick out the faintest of signals even in the presence of stronger, adjacent signals. The IC-7610 introduces dual RF direct sampling receivers. Achieving 100dB RMDR, these receivers rival that of other top-of-the-line transceivers. The IC-7610 also comes with a high-speed, high-resolution, real-time spectrum scope on a 7-inch color display.

Output power: 100W (25W AM)
RX Frequencies: 0.030-60.00MHz
Receiver type: Direct sampling

RF direct sampling system

The IC-7610 employs an RF direct sampling system, where RF signals directly convert to digital data and then processed by the FPGA (Field-Programmable Gate Array). This process reduces distortion that naturally occurs in the various mixer stages found in traditional superhetrodyne receivers.

The RF Direct Sampling System in the IC-7610 is capable of 110 dB* RMDR. This performance gives you the ability to pull weak signals out of the noise of strong adjacent signals. There is a difference you can actually hear as the desired signal comes out of the pileup!

Independent dual receiver

Whether listening to both sides of DX station running split, or looking for a multiplier on a different band or mode, the dual receivers in the IC-7610 have you covered. Two separate DIGI-SEL preselectors, two separate Band Pass Filter networks, feed two separate A/D converters into the FPGA.

Built-in automatic antenna tuner
Digital-Up-Conversion (DUC) for clean transmit

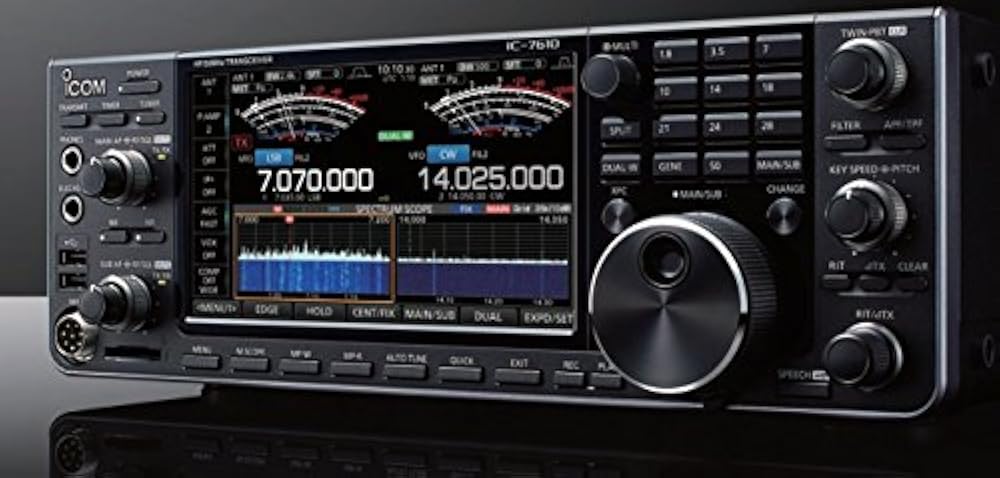

Large color touch screen
Quick Dualwatch function
Multi-function meter (S-meter, Power, ALC, COMP, SWR, ID, VD and TEMP)
