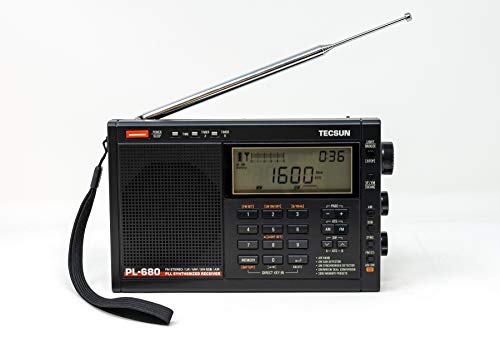

Radio Tecsun PL680 PLL Dual AM FM LW SW Aérea SSB

Specifications:

Frequency Range:

FM: 76-108 MHz, 87-108 MHz
MW (AM): 520-1710 kHz, 522-1620 kHz
LW: 100-519 kHz
SW: 1711-29999 kHz
AIR: 118 – 137 MHz

Tuning Methods:

Manual jog dial tuning
Auto scan tuning
Auto Tuning Storage (ATS)
Direct keypad entr

Sensitivity:

FM (S / N = 30dB) < 3uV
MW (S / N = 26dB) < 1mV/m
LW (S / N = 26dB) < 5mV/m
SW (S / N = 26dB) < 20uV
SSB (S / N = 10dB) < 1uV
AIR (S/N = 10dB) <5uV

Selectivity:

FM > 30dB (± 200kHz)
MW / LW > 40dB (± 9kHz)
SW > 40dB (± 5kHz)

S/N Ratio:

FM better than 65dB
MW / LW better than 40dB
SW better than 50dB

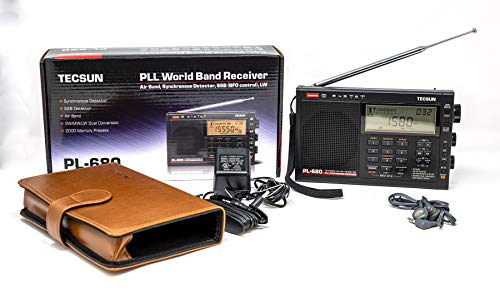

What’s in the box:

PL-680 radio (English version)

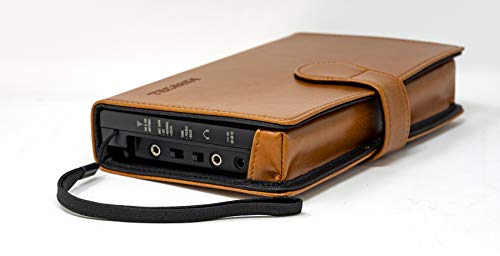

Protective carrying pouch
Stereo earphones
Tecsun AN-06 FM/SW wire antenna
English manual
4 pcs Ni-MH rechargeable battery
AC/DC charger: 120V (US style)

Full range coverage including AM/FM, Longwave & Shortwave with Single Side Band, and Air Band
PLL synthesized digital dual conversion receiver with unparallelled sensitivity & selectivity
Single Side Band receiver with 10 Hz tuning step
24 hour alarm clock plus sleep timer from 0-120 minutes
Powered by 4 AA batteries, rechargeable batteries and 120V charger are included
